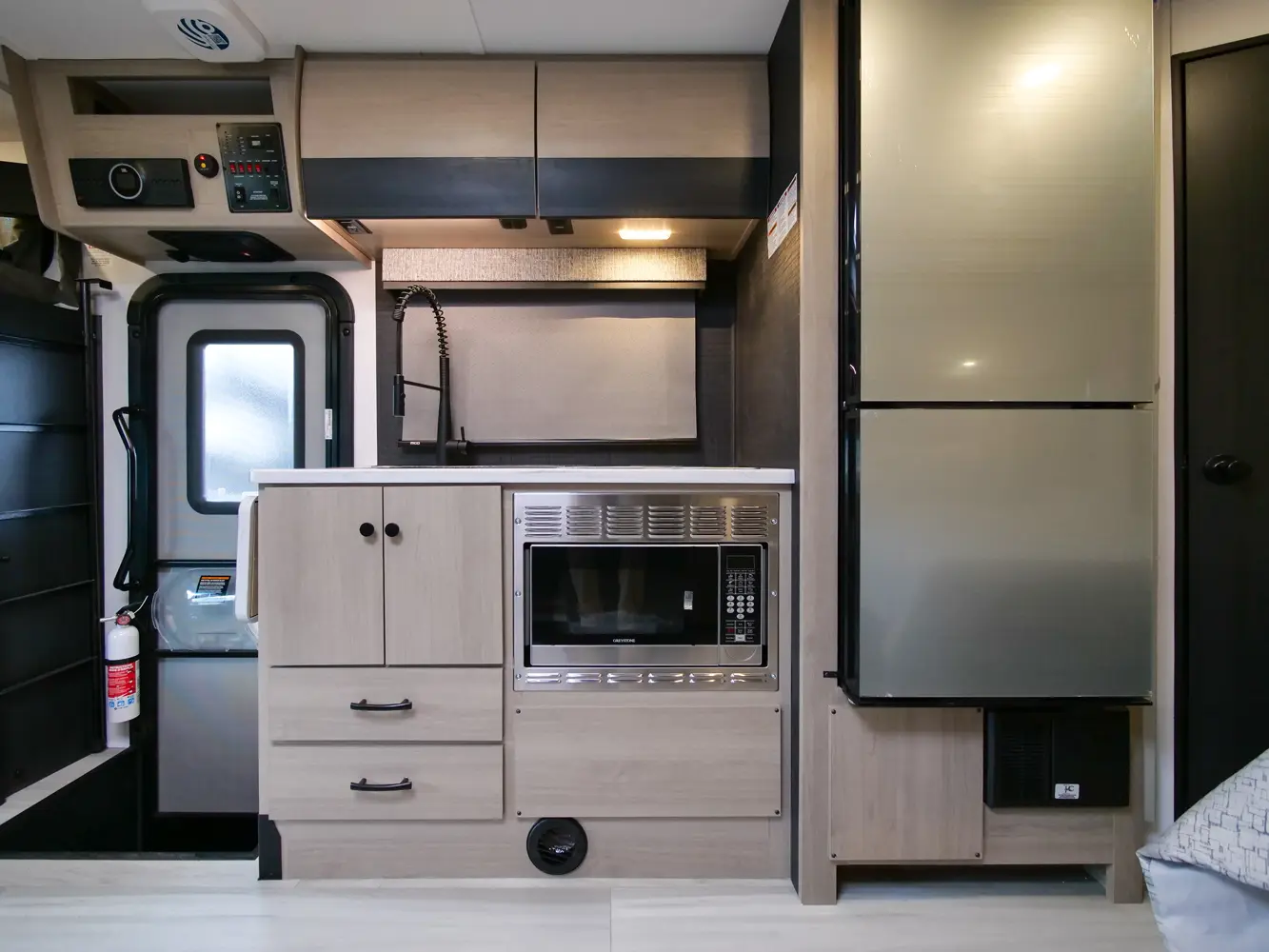

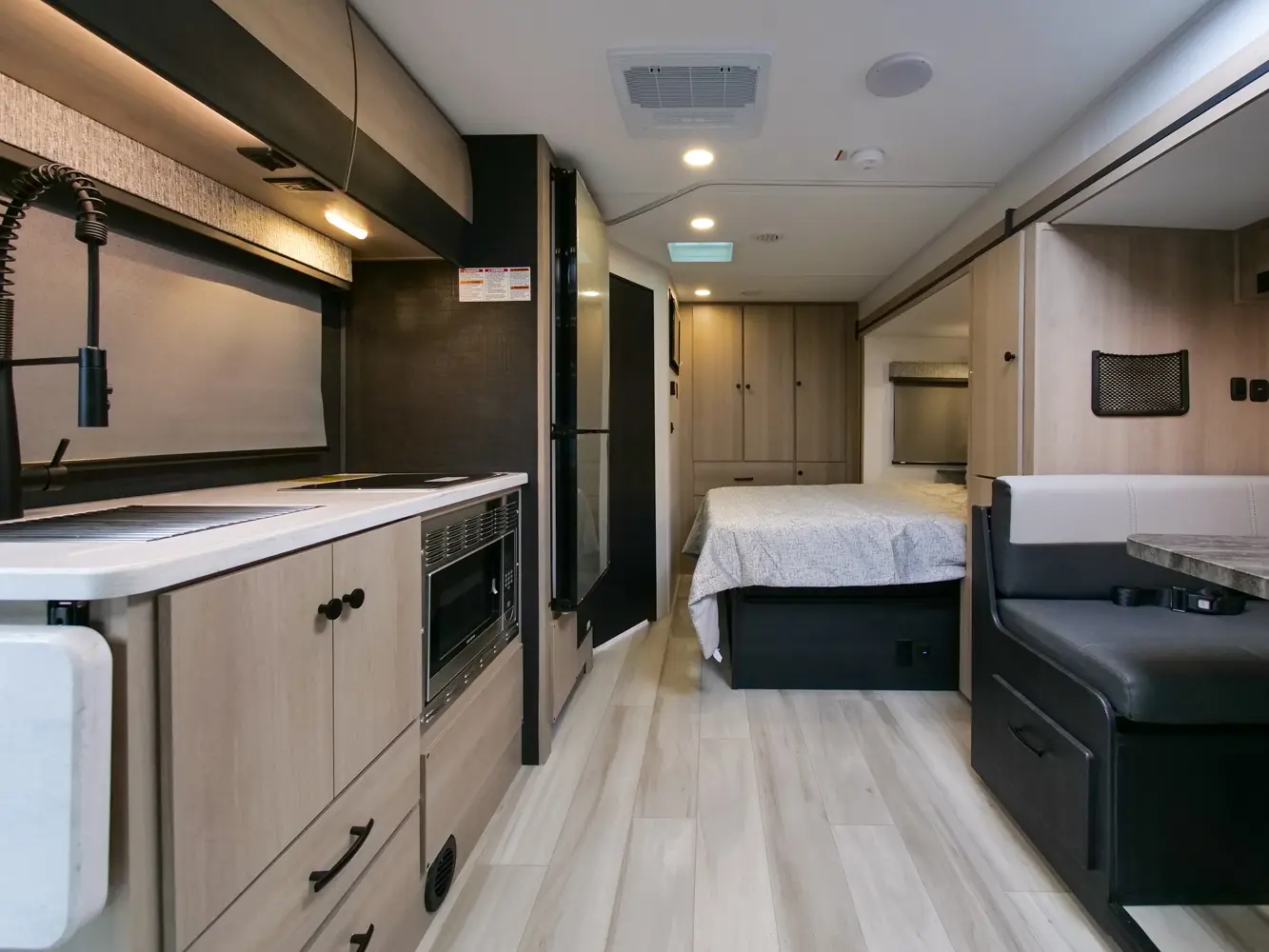

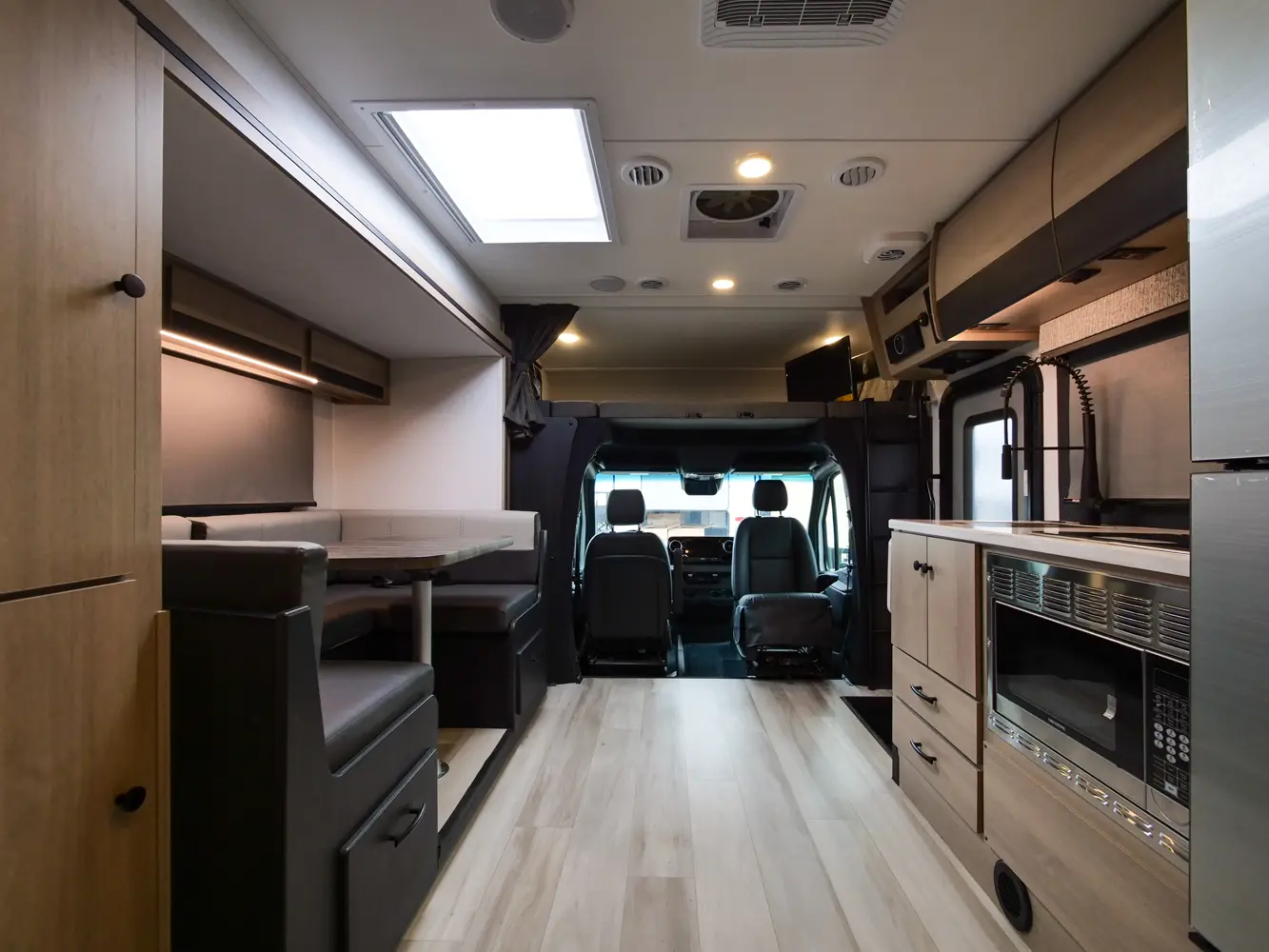

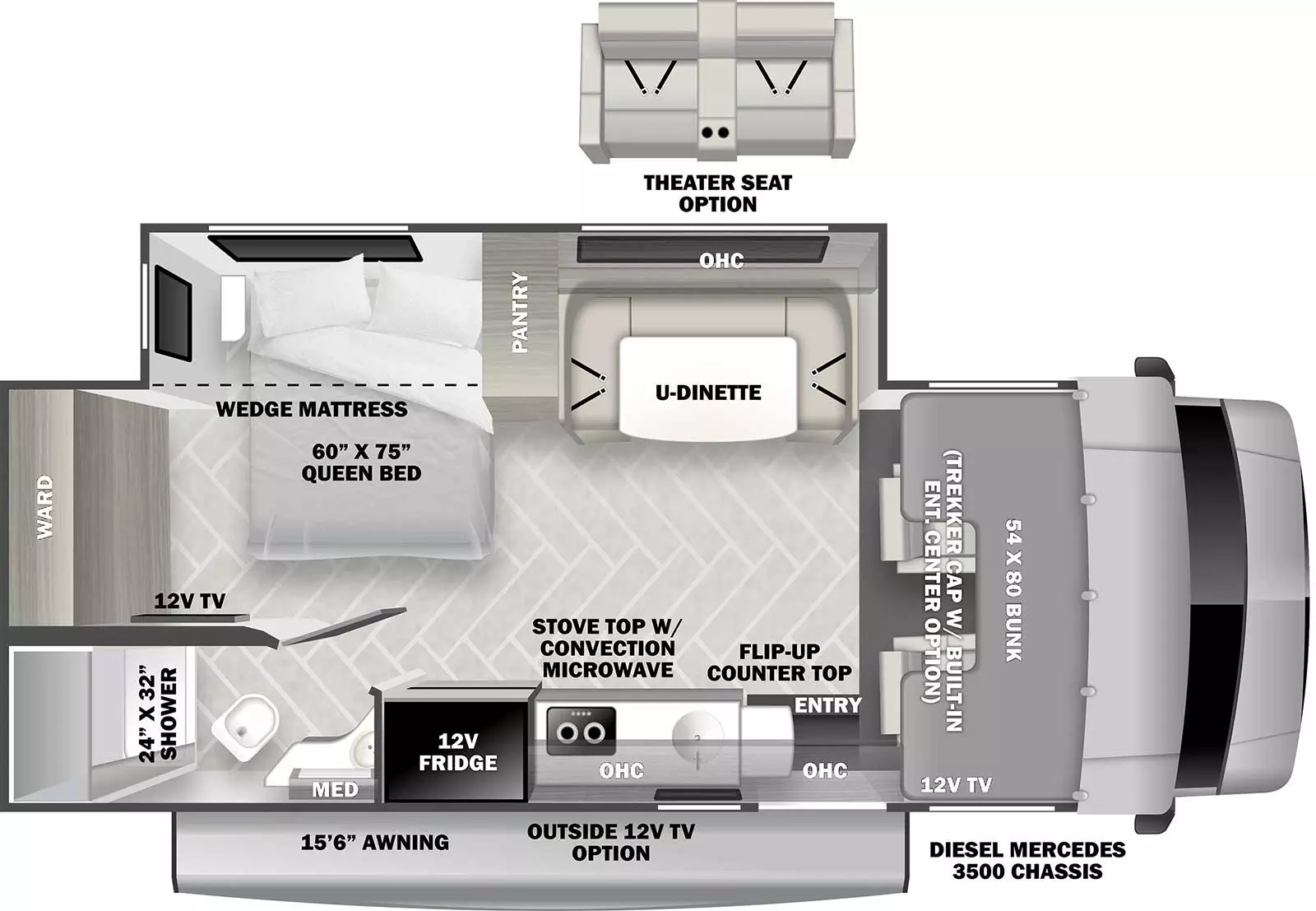

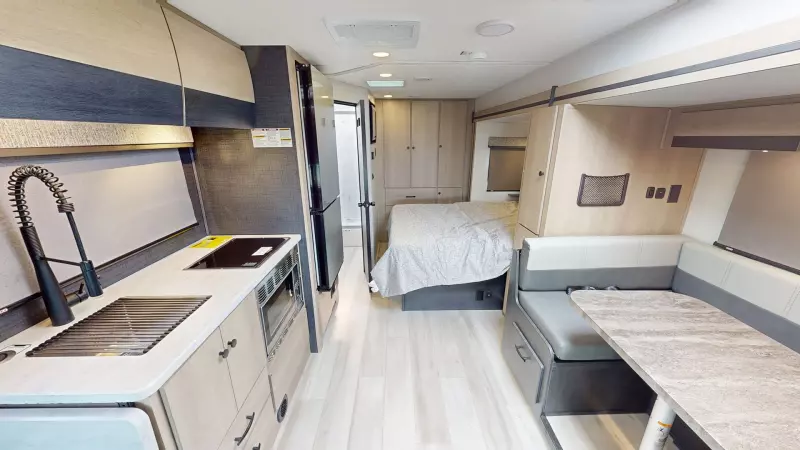

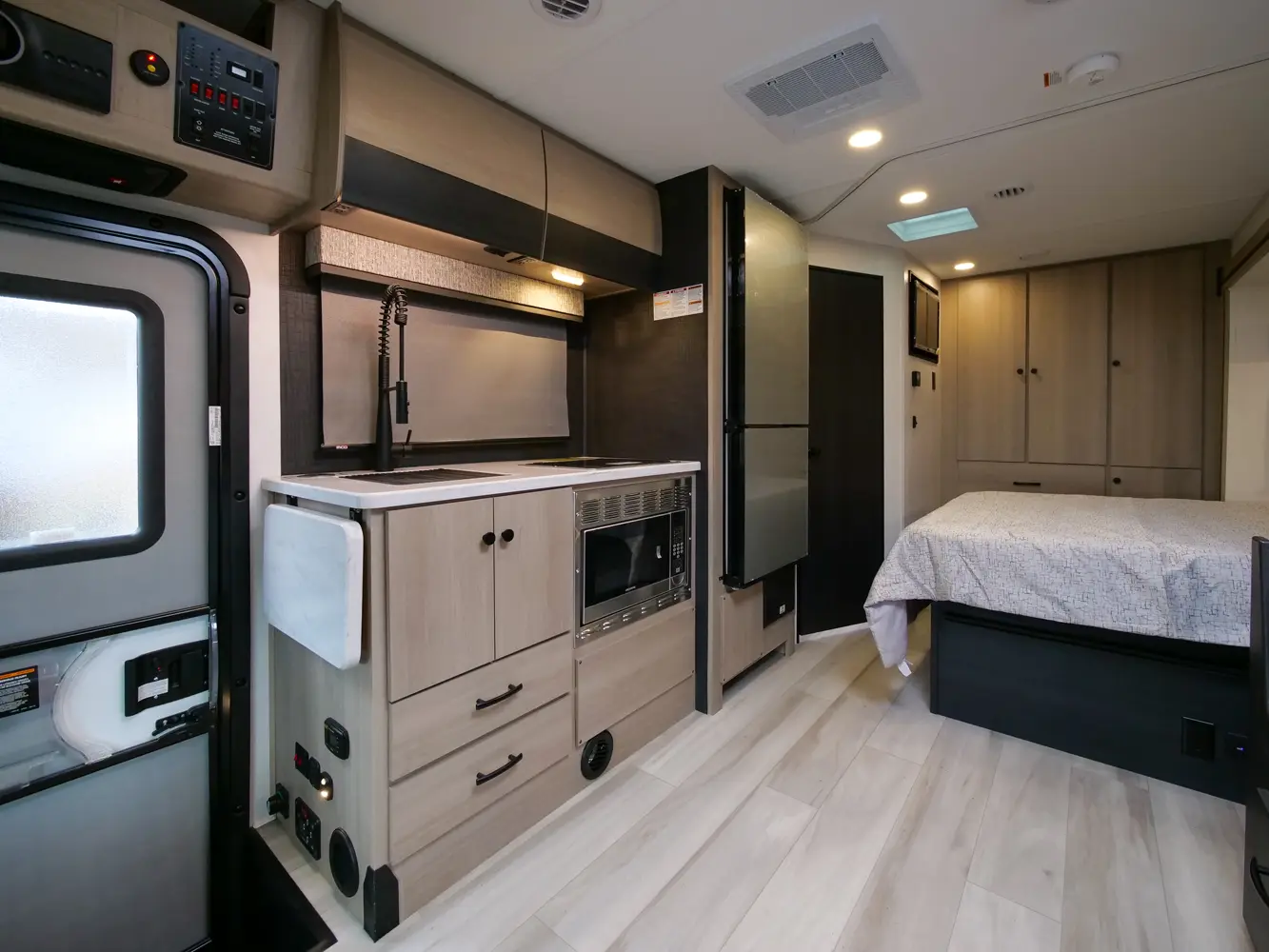

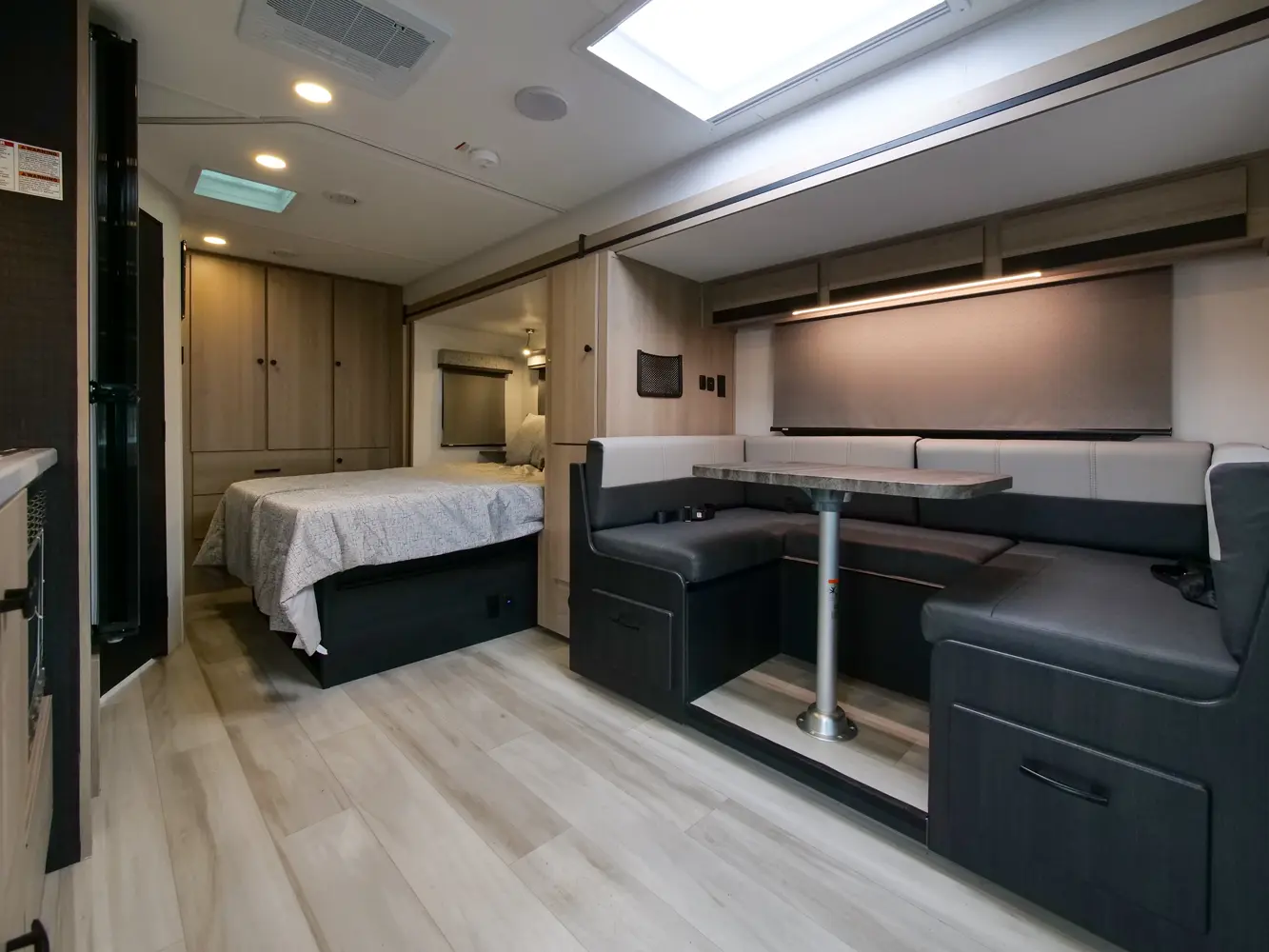

The 2401B has 1 slide out on the off-door side. Exterior features include a 15 ft. 6 in. awning and an optional outside 12V TV. This floorplan is built on the diesel Mercedes 3500 chassis. Interior layout from front to back includes: front 54 x 80 cab over bunk with 12V TV (Optional Trekker Cab with built-in entertainment center in place of bunk); off-door side slide out holding a 60 x 75 Queen bed with wedge mattress, pantry, overhead cabinet and U-dinette (Optional theater seat in place of dinette)'; door side kitchen with 12V refrigerator, stovetop with convection microwave, overhead cabinet, sink and flip up extension; rear door side corner bathroom with 24 x 32 shower, toilet , medicine cabinet and sink; off-door side corner bedroom with rear wall wardrobe, 12V TV and previously mentioned 60 x 75 Queen bed with wedge matteress in the slide out.

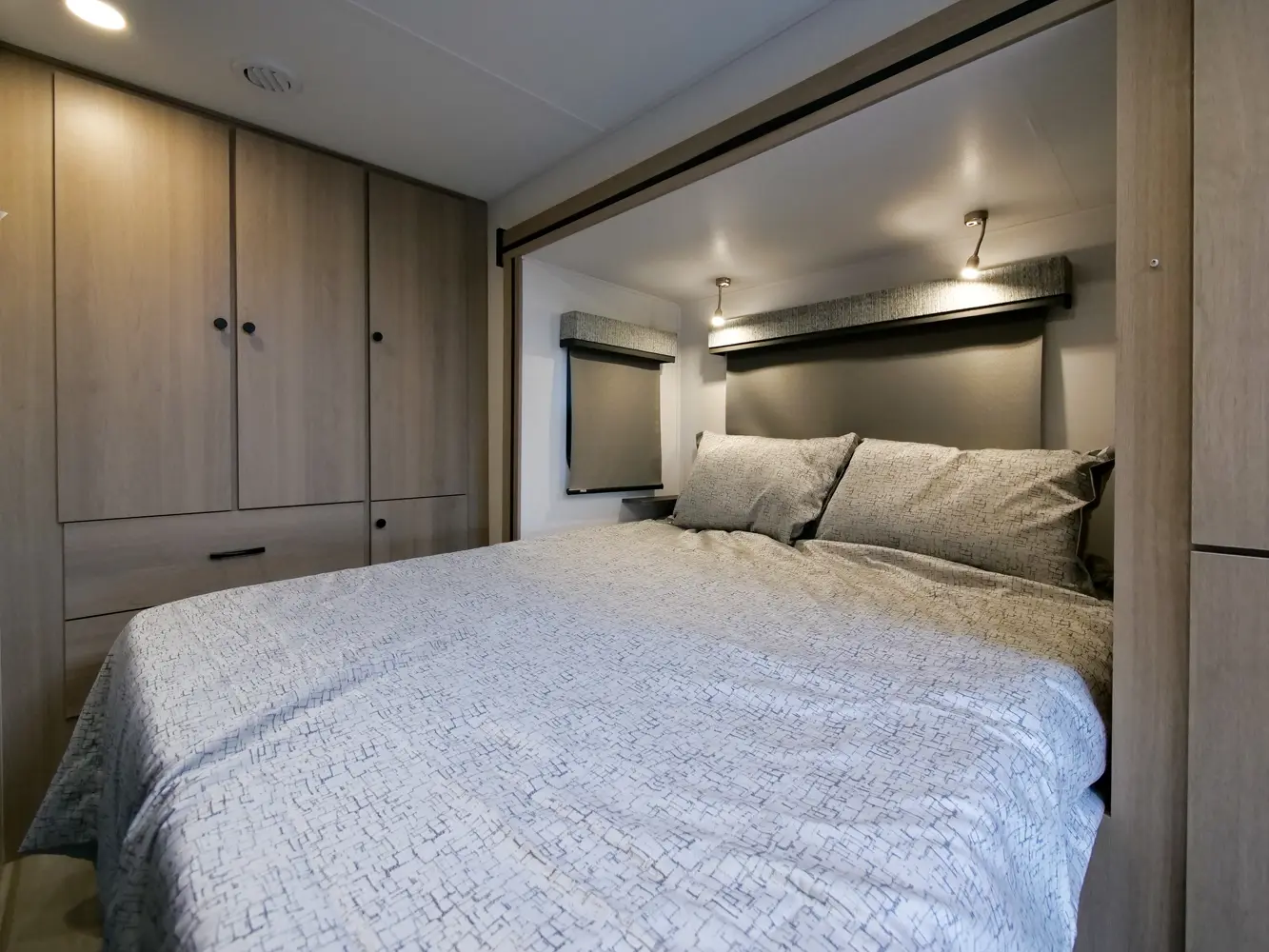

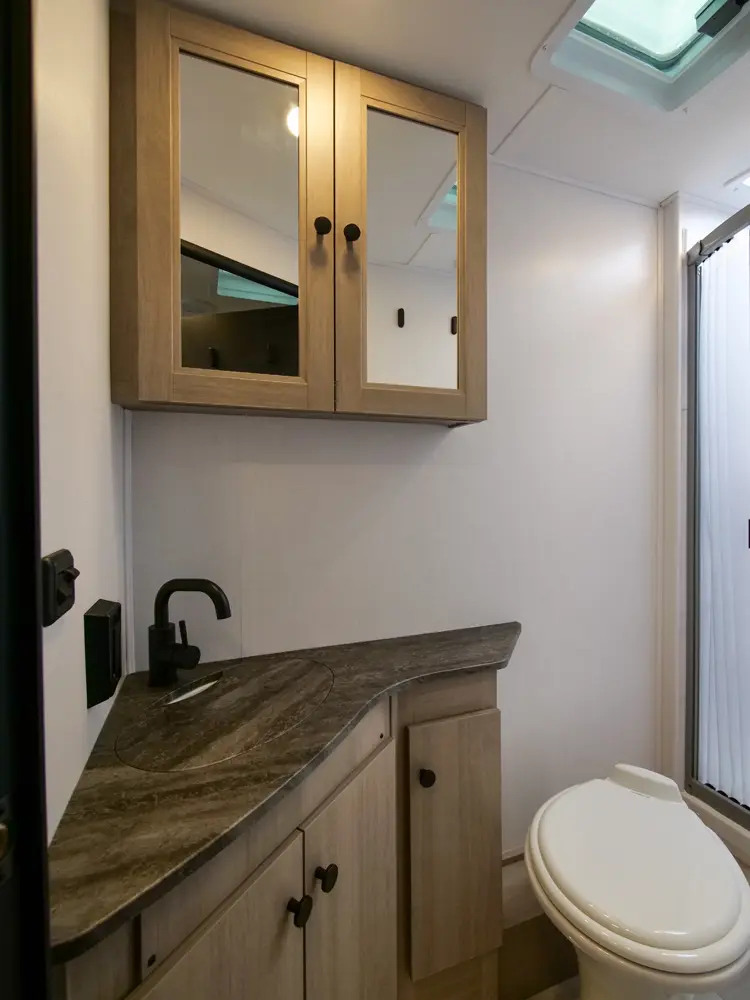

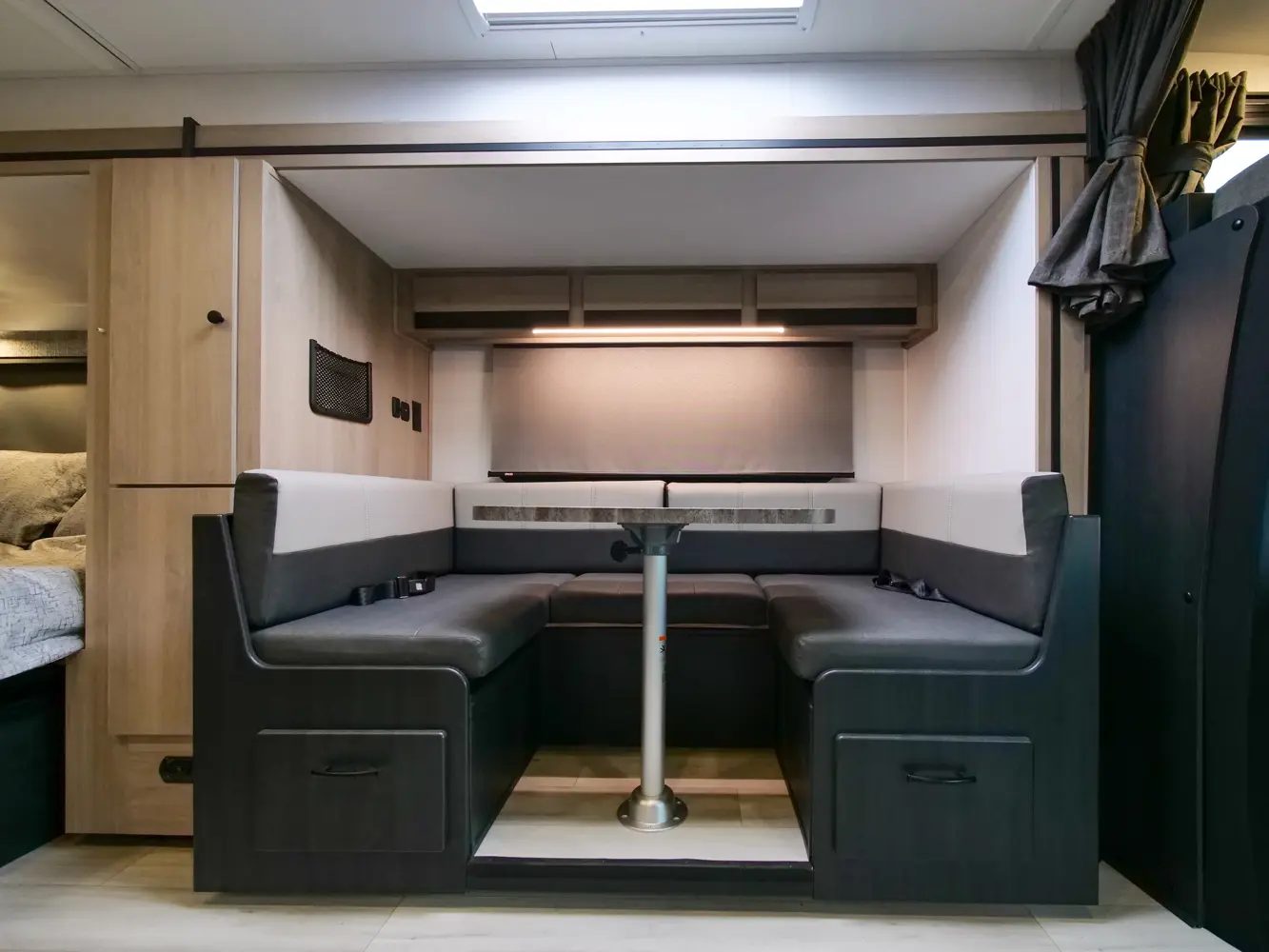

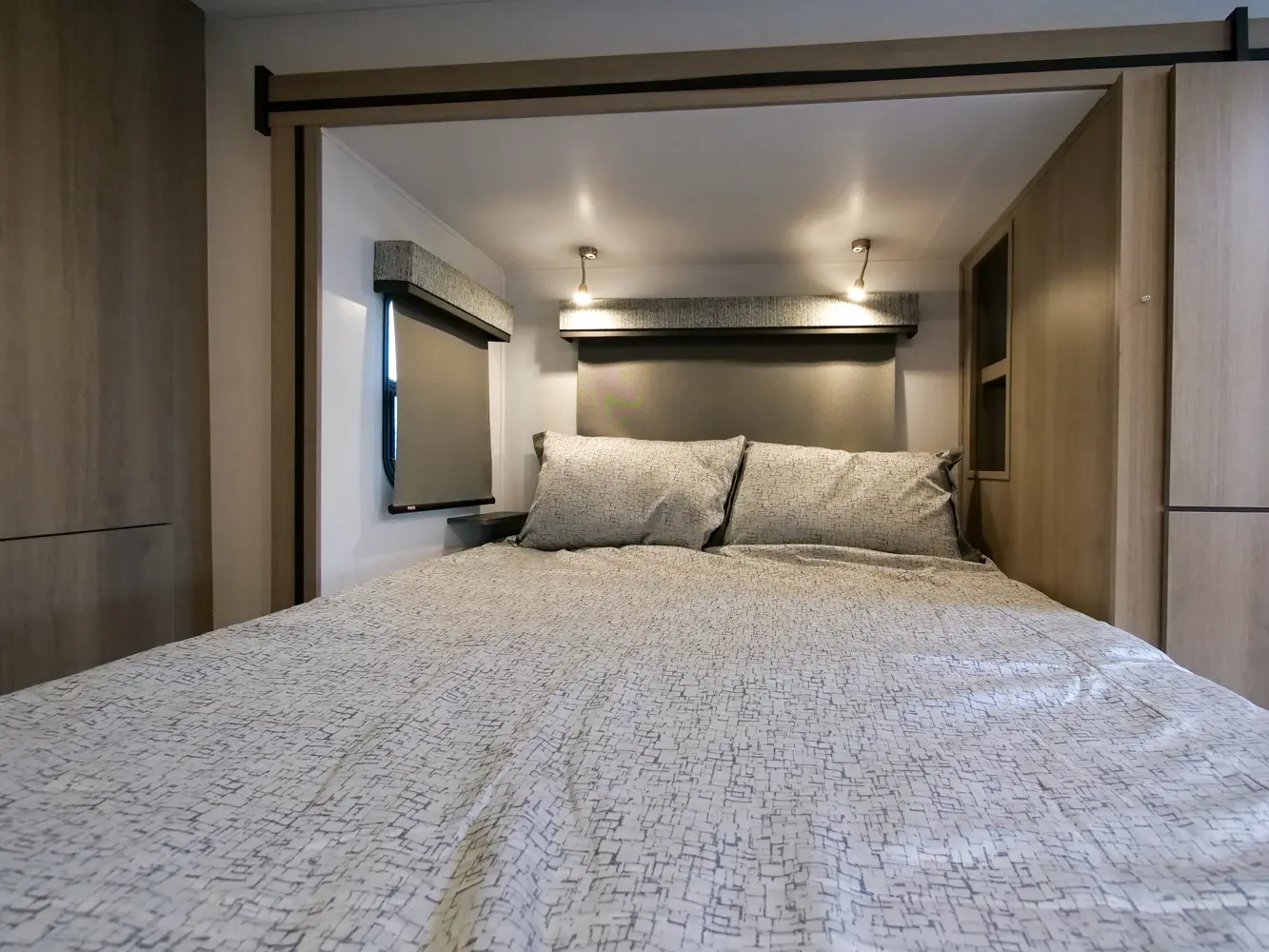

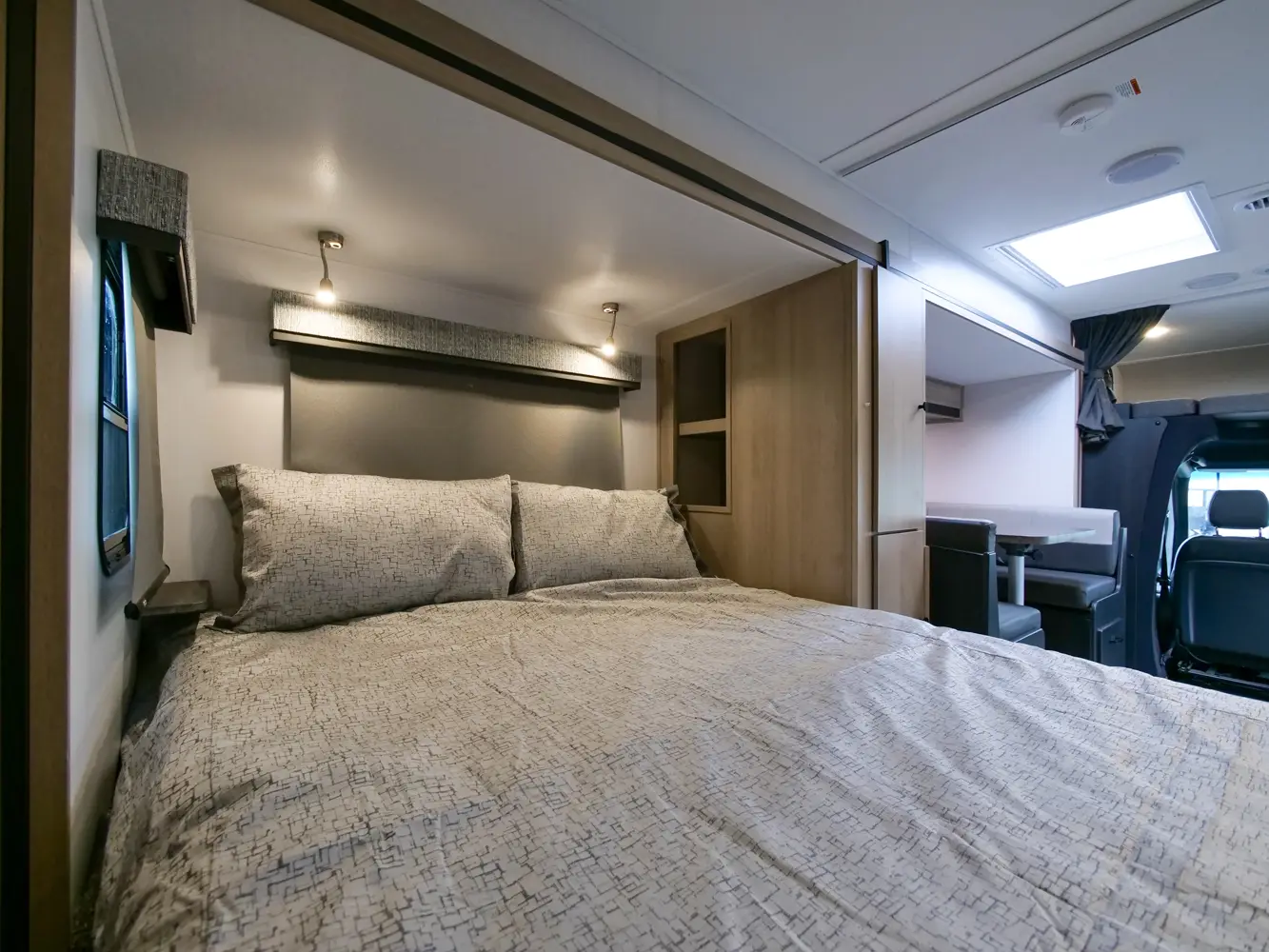

The Forester 2401B features a full-wall slide with a flush floor. The three burner range and convection microwave are great for meal prep, and the U-shaped dinette will be the perfect place to dine together. The rear corner bedroom includes a queen bed with wedge mattress, a privacy curtain, and a closet above a built-in dresser. The bathroom features a 24" x 32" shower, commode, and corner sink with extended counter and medicine cabinet.

Wheelbase: 170"
GVWR: 11,030 lb.
GCWR: 15,250 lb.
GAWR Front: 4,080 lb.
GAWR Rear: 7,720 lb.
Fuel Capacity: 26 gal.
LP Tank Capacity: 56 lb.
Exterior Length: 25' 5"
Exterior Height: 11' 3"
Exterior Width: 95"
Fresh Water: 35 gal.
Gray Water: 32 gal.
Black Water: 32 gal.
Awning Size: 15'6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
