Explore 2026 Sierra Destination Trailers 396RKLR Floorplan

Home > Sierra > Sierra Destination > 396RKLR

Click To Enlarge

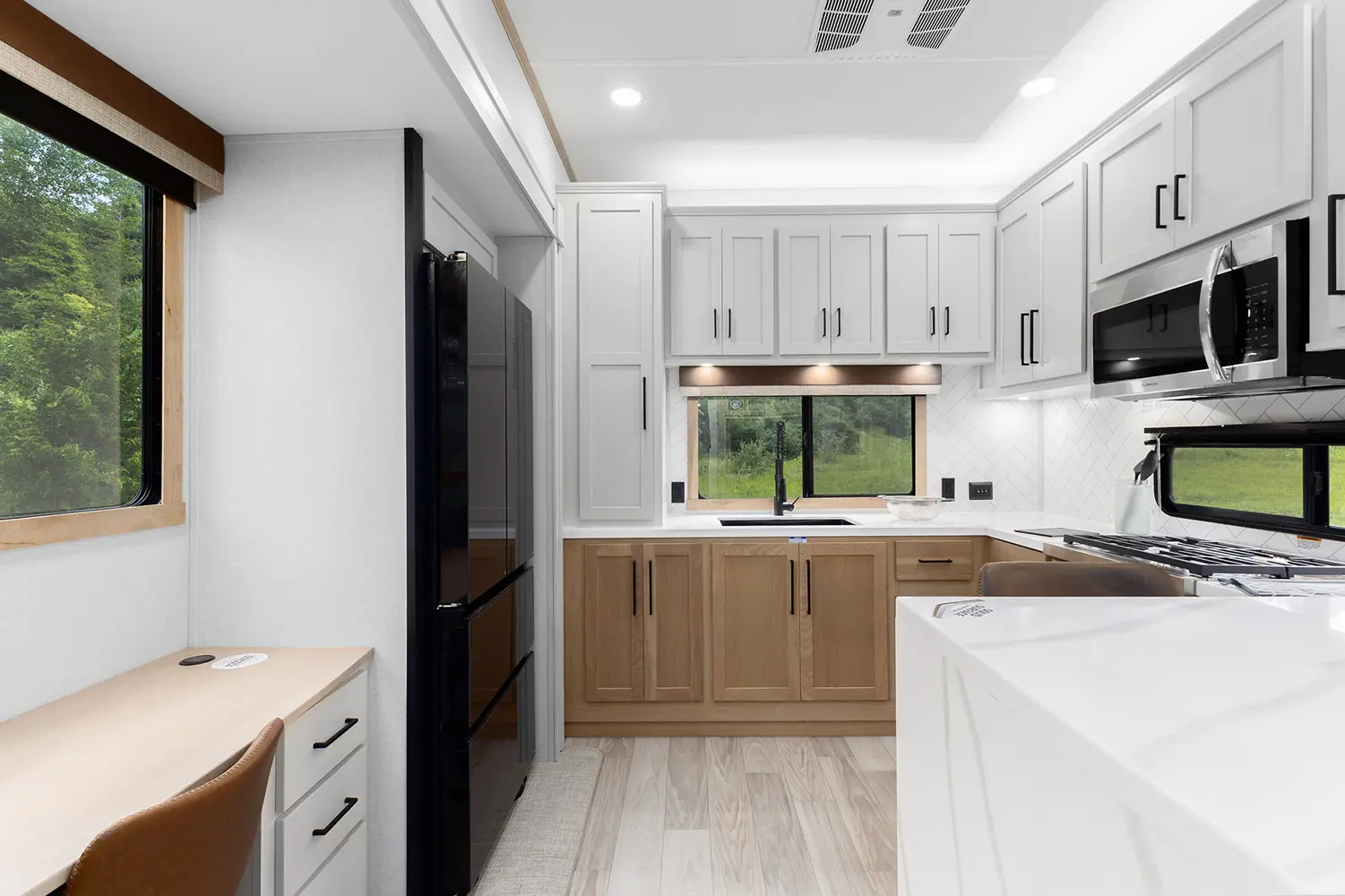

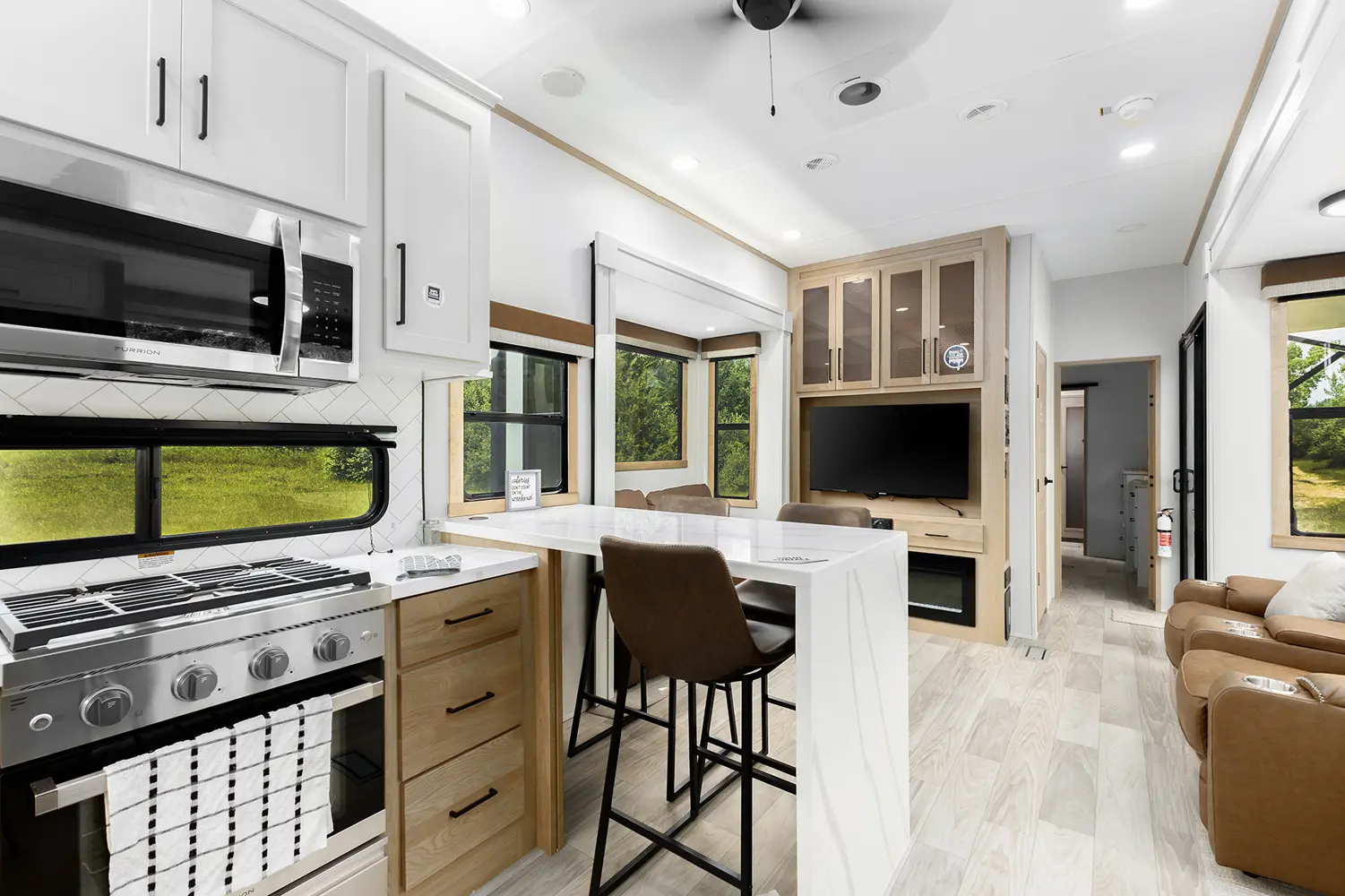

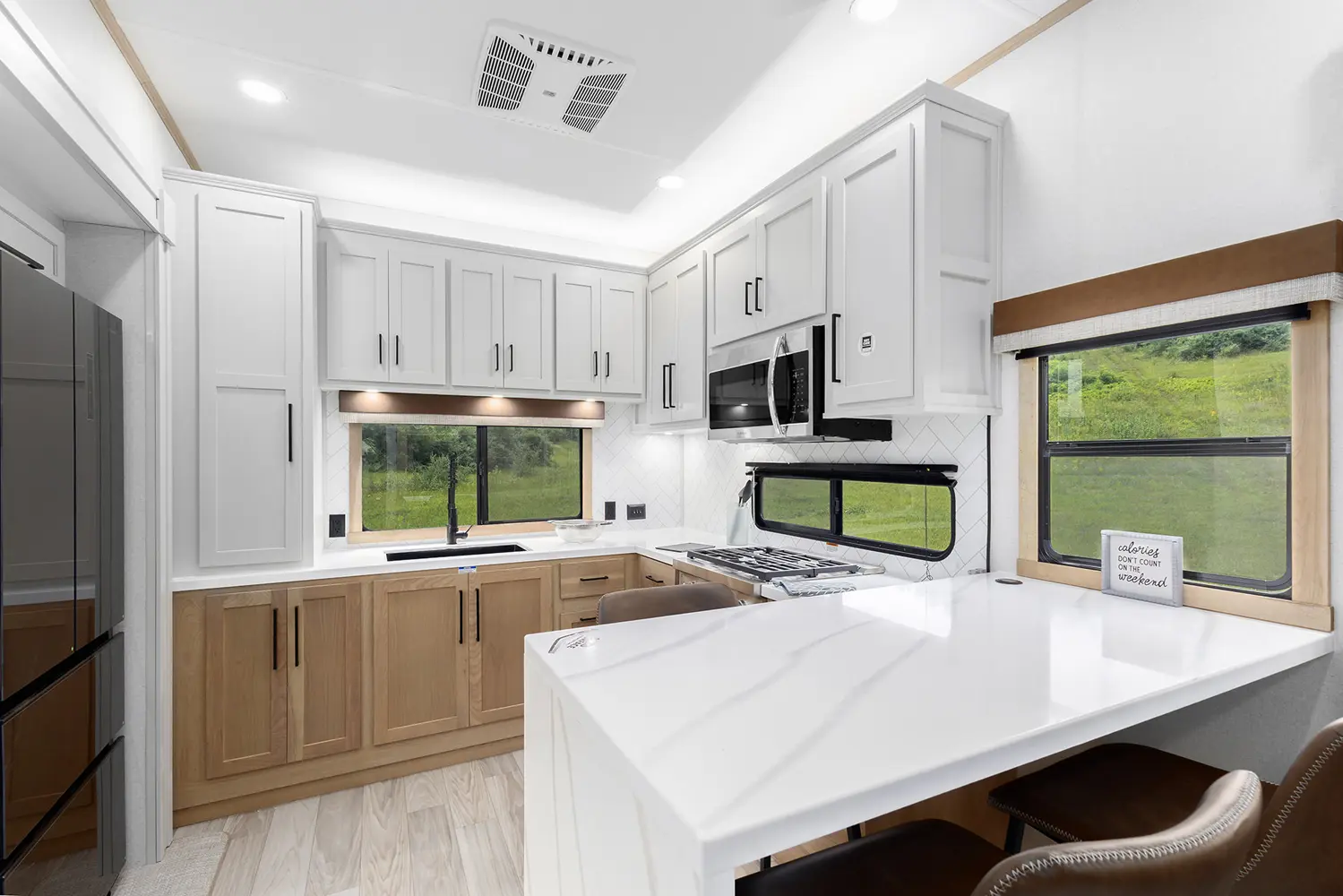

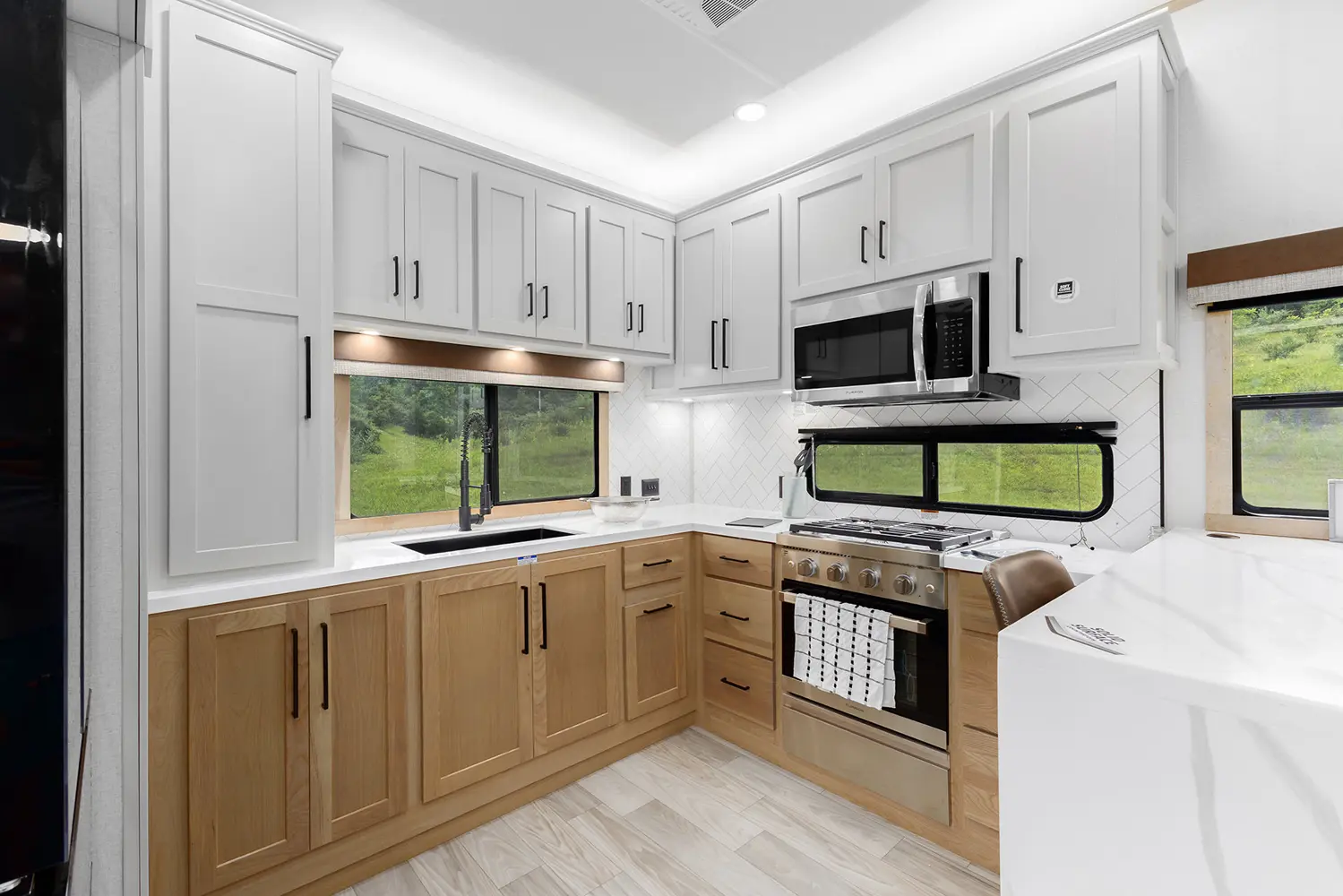

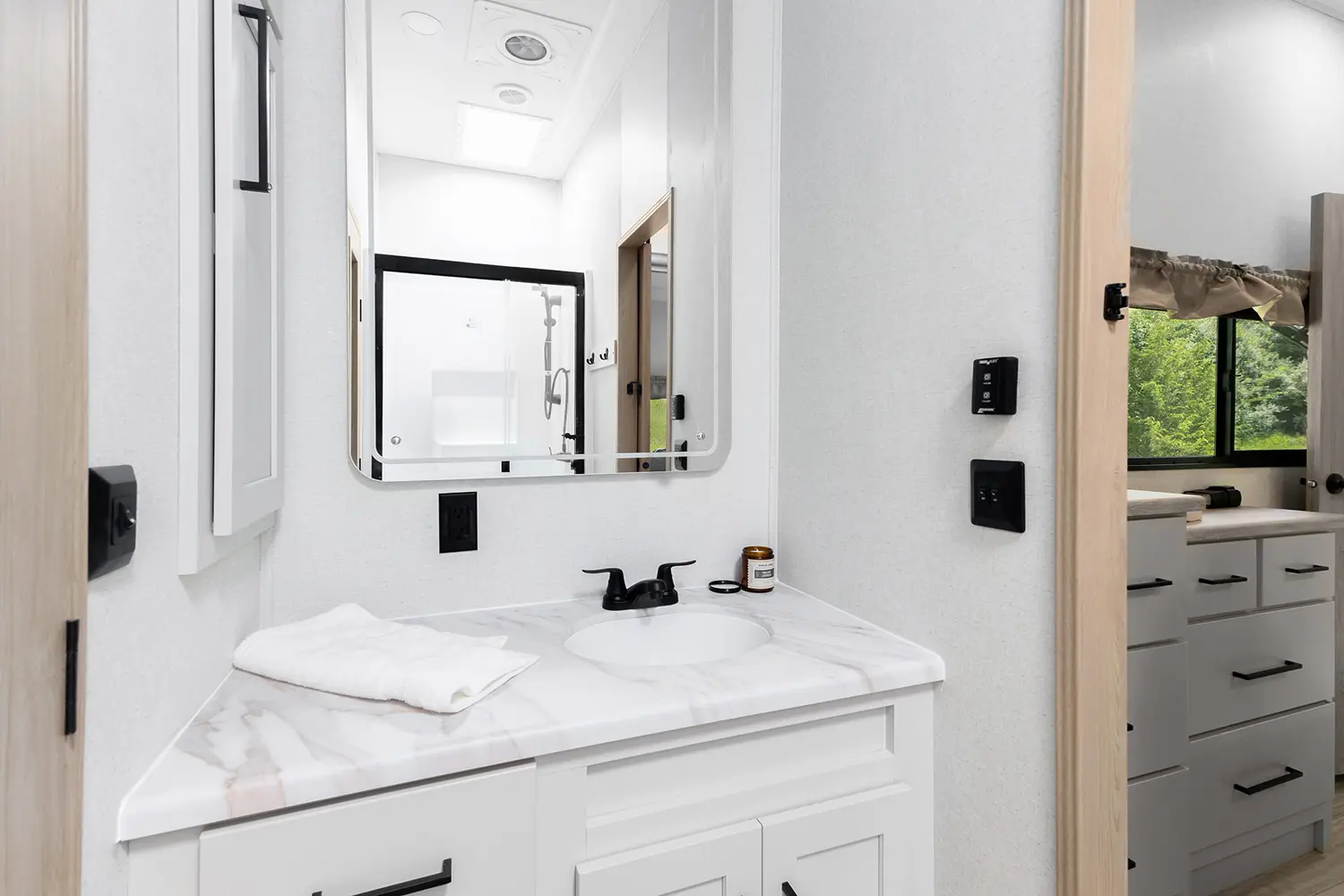

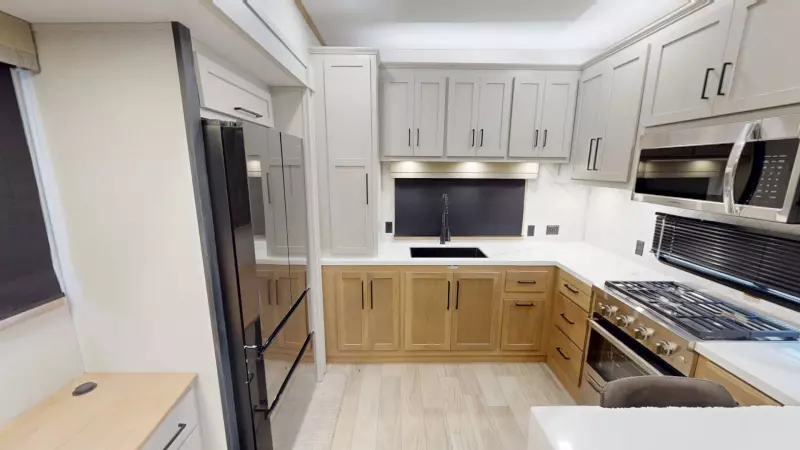

The Sierra Destination 396RKLR floorplan has one entry and three slide outs. Exterior features include: fiberglass exterior and 21' awning. Interiors features include: rear kitchen and bathroom and a half.

Hitch Weight: 1,410 lb.
GVWR: 13,410 lb.
UVW: 11,809 lb.
CCC: 1,601 lb.
Exterior Length: 41' 6"
Exterior Height: 13' 4"
Exterior Width: 101"
Fresh Water: 50 gal.
Gray Water: 156 gal.
Black Water: 54 gal.
Awning Size: 21'

396RKLR Floorplan Sierra Destination Trailers Features & Options

- Painted Full Profile Fiberglass Front Cap with Windshield
- Lippert auto adjust brakes
- MORryde® Detachable Step Above Where Available
- Underbelly Armor
- Electric awning with LED light strip
- Coated color matched exterior fiberglass
- 30 lb. double LP tanks with auto change over
- Detachable hitch (NA 40DUPLEX)
- 60" dual pane patio door, 80% tinted
- Large, tinted windows with 80/20 UV prohibitor
- 16" Radial tires
- Automotive-style fender skirts
- Hitch light
- Porch light with interior switch
- Rain gutters with extra-long drip spouts (Prevents black streaking)
- Exterior folding grab handle

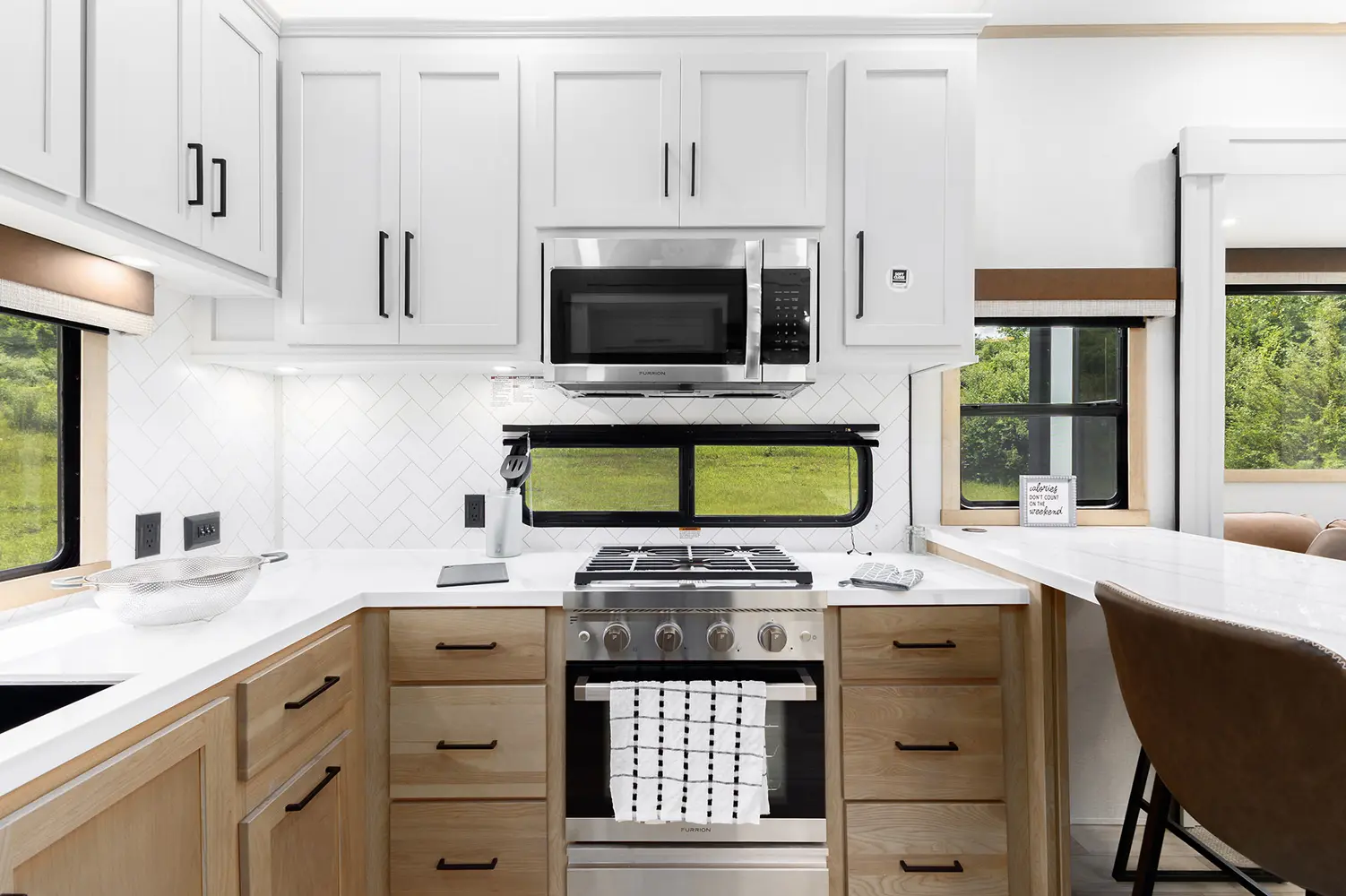

- Chef Collection 3 Burner, 24" Range w/ Drawer

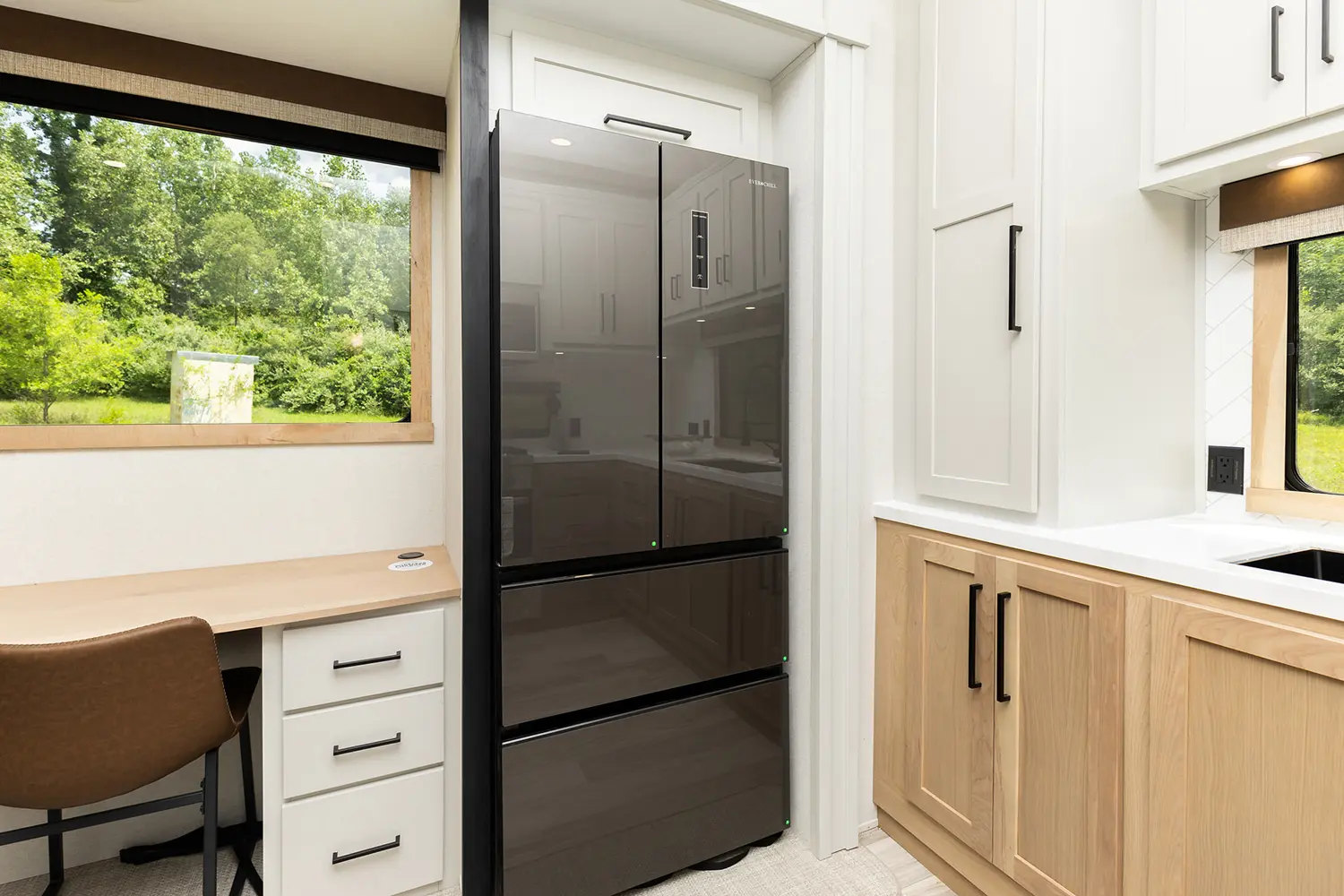

- 19 cu. ft. Stainless Steel Refrigerator 12V (Where Available)
- Stainless steel kitchen package
- Solid surface kitchen counter tops
- 50" Flatscreen Smart TV
- JBL Aura Cube FM/Bluetooth media center
- Teddy Bear® bunk mats
- Washer/dryer prep
- 7’ slide-out height (Main Slides)
- Memory foam mattress
- Residential stain resistant carpet
- Two color coordinated interiors
- Hidden hinged, soft close drawers and cabinets
- Full extension ball bearing drawer glides
- Stainless steel under mounted kitchen sink
- Decorative backsplash
- Handmade cabinetry with screwed lumber core stile construction
- Recessed residential LED lighting throughout
- Fiberglass one-piece shower
- Upgraded adjustable shower head with shelves
- Accent lighting over dinette
- Walk-in shower (Where Available)
- Crown molding over kitchen cabinets
- Extra-large picture windows throughout
- Vented side windows in slide outs
- TV antenna with booster
- Beachside Sundance Congoleum linoleum
- Solid wood drawer fronts with birch sides
- Solid wood, square inset cabinet doors, painted or wood grain
- Bedroom slide out fascia
- Trash receptacle in kitchen
- Ceiling paddle fan(s) in living room and bedroom (Where Available)

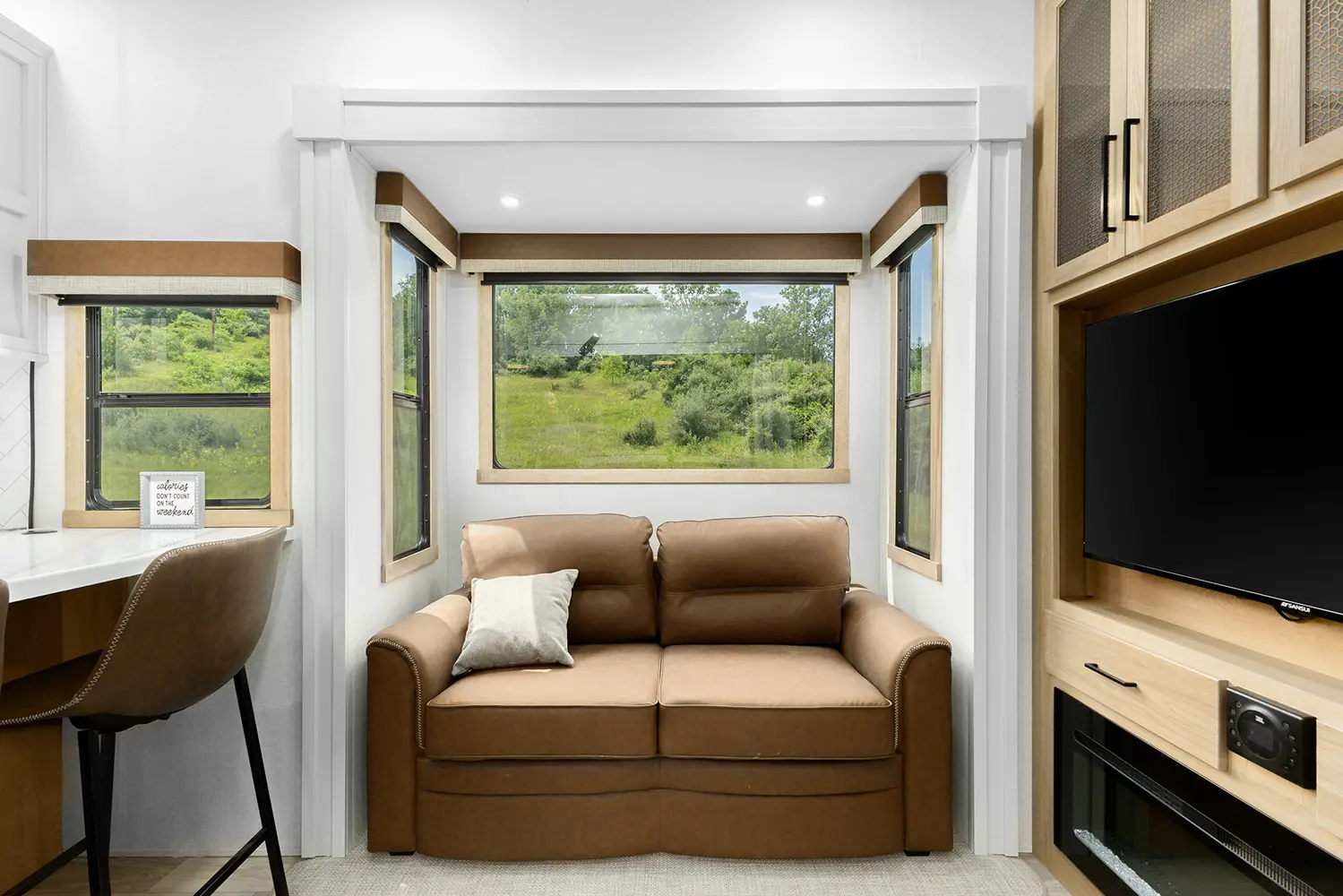

- Tri-fold Hide-a-bed sofa (Where Available)
- Designer window treatment
- Dual Ducted 15k BTU Air Conditioners, Prepped for 3rd 15k BTU A/C
- AIRDIRECT® Air Vents for Improved Efficiency
- 60,000BTU On Demand Tankless Water Heater
- 40,000BTU Furnace
- Interior thermostat for heating and cooling
- Interior monitor panel for holding tanks
- Flush floor hydraulic slide outs (Where Available)
- Satellite and cable hookup with RG-6 cable for high quality picture
- Porcelain foot flush toilet
- 65 Amp converter
- Power fan in Kitchen and Bathroom(s)
- 2" x 3" floor joists 12" on center
- 5/8" tongue & groove DryMax® OSB floor decking
- 3/8" roof decking (full walk-on roof)
- Cambered powder coated frame with rust prohibitor
- Underbelly Armor
- 5" truss roof rafters
- R-10, 2" sidewall construction

- Smoke alarm
- Fire extinguisher
- Breakaway switch (battery hook-up required)
- Key-Locked Patio Door
- Dead-bolt lock on entry door
- LP/CO gas detector
- Fire escape windows
- Maxx Air fan w/rain sensor

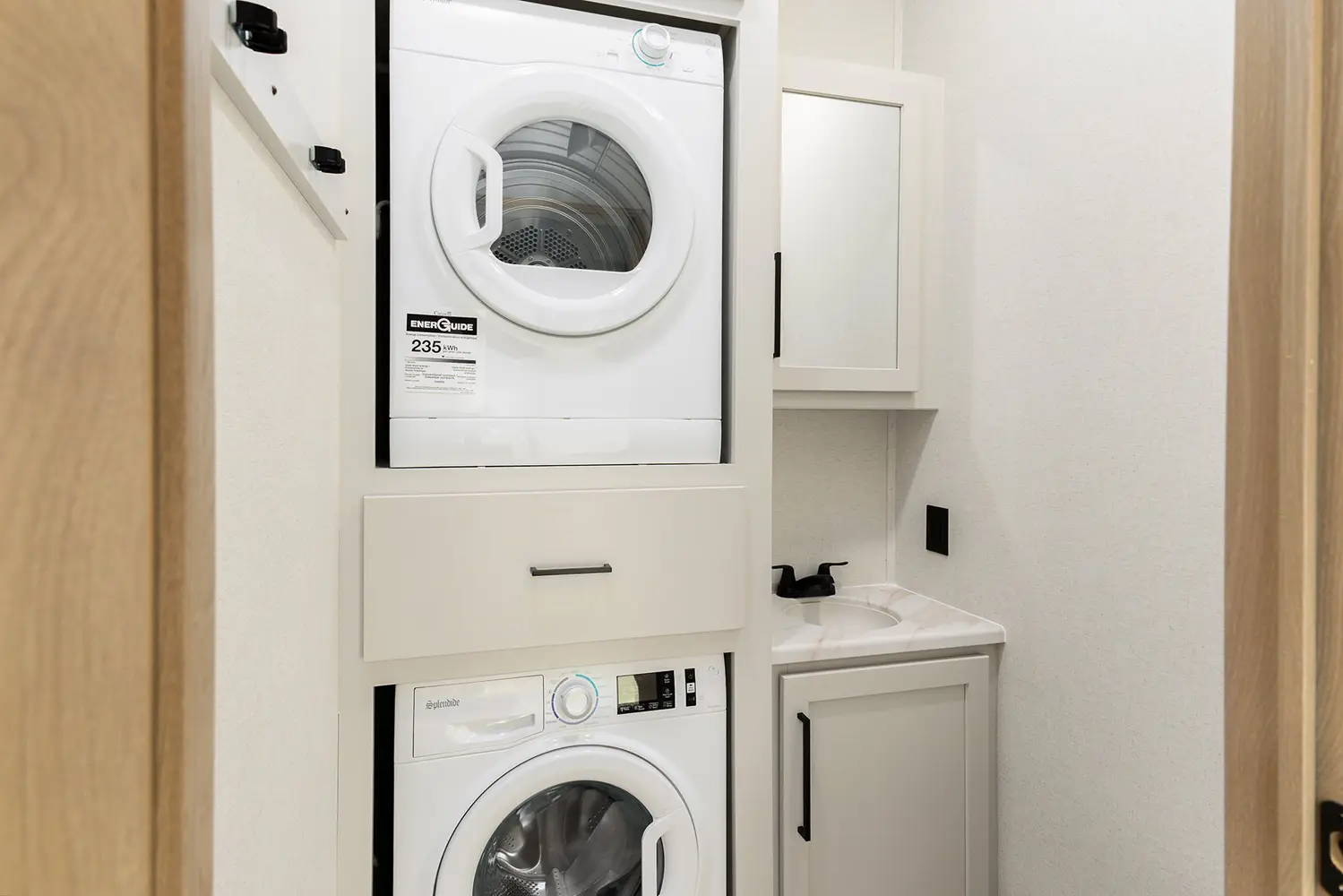

- Washer and Dryer
- Central vacuum
- Stab jacks (4)
- Slide room awnings (all slides)
- Non self-contained (No holding tanks w/house type toilet)
- Dual pane windows
- 3rd A/C power saver direct dump system w/ wall thermostat
- Two chairs in place of ottoman bench
- Fire escape windows
- Two chairs in place of ottoman bench
- Cordless vacuum
- Slide room awnings (N/A dinette slides)
- Washer and Dryer (Standard on 3800RK & 3900HBLR)
- Dual pane windows (N/A 3900HBLR 84” Window)
- 3rd A/C power saver direct dump system w/ wall thermostat
